2 numbers on front of engine


18 replies to this topic

#1 Guest_Guest_*

Guest_Guest_*
  • Guests

Posted 16 January 2010 - 12:28 PM

On here I just saw an engine with two number placards (same number over each window) above the engine windows. Each said 4901 for, I guess, the train's number. I saw this on a pic the other day of a freight.

Question: Since these seem to face forward why does the number have to be duplicated? One is over each of the front windows.

#2 battalion51

battalion51

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 7,947 posts
  • Gender:Male
  • Location:USA

Posted 16 January 2010 - 12:42 PM

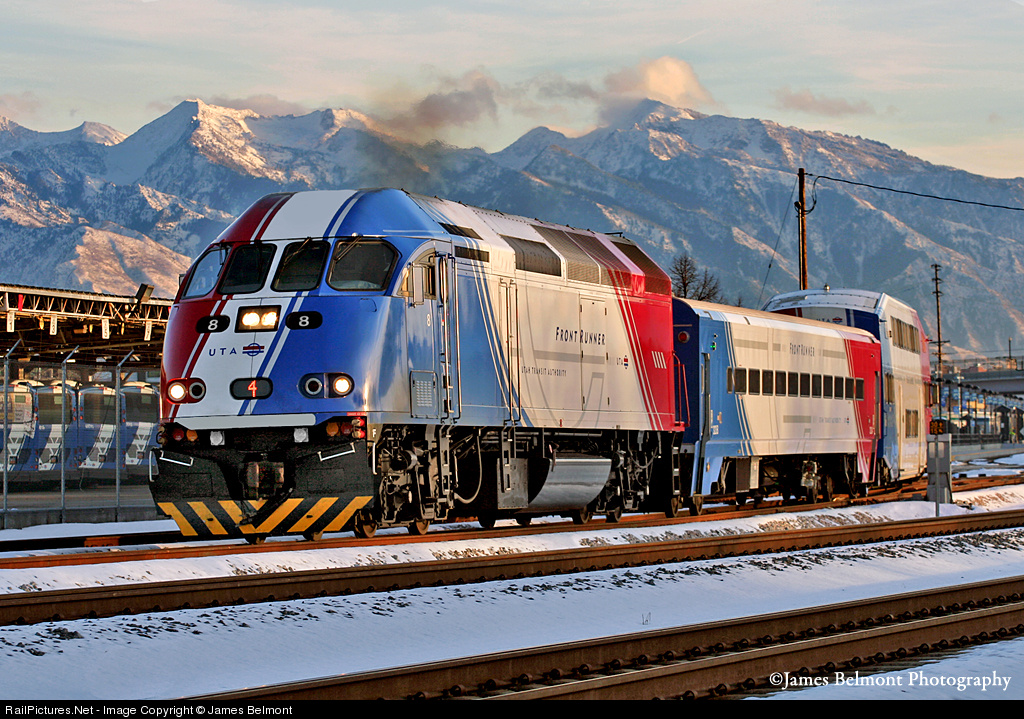

You mean something like this?

Posted Image

This is really a stylistic piece. On motors that are originally designed for freight use it's very common to have two number boards, and even on many passenger units like the F40. It is important that number boards be visible on the motor because this is how work crews, signal maintainers, towers, etc. track the trains. The train symbol is rarely visible on a train, so it's imperative that they have a method to be able to identify the train.

The Chief
Rail Miles Travelled: 112,496


#3 Guest_Guest_George Harris_*_*

Guest_Guest_George Harris_*_*
  • Guests

Posted 16 January 2010 - 08:21 PM

Yes, these are the engine number. They are also painted on both sides of the unit. There is a certain amount of angle to these number boards so that they are visible from the side to a certain extent. As noted, trains are normally identified by their engine number. Even, as in with scheduled trains, if there is a train number the train will be identified by both, usually in the form of "train number 123, engine number 4567"

#4 Guest_Guest_Dutchrailnut_*_*

Guest_Guest_Dutchrailnut_*_*
  • Guests

Posted 16 January 2010 - 10:01 PM

You mean something like this?

Posted Image

This is really a stylistic piece. On motors that are originally designed for freight use it's very common to have two number boards, and even on many passenger units like the F40. It is important that number boards be visible on the motor because this is how work crews, signal maintainers, towers, etc. track the trains. The train symbol is rarely visible on a train, so it's imperative that they have a method to be able to identify the train.



#5 Dutchrailnut

Dutchrailnut

    Conductor

  • Members
  • PipPipPipPipPip
  • 718 posts
  • Gender:Male
  • Location:Brookfield, Connecticut, USA
  • Interests:Ships, Planes, Trains

Posted 16 January 2010 - 10:02 PM

The number is engine number, its not the train number.

#6 RyanS

RyanS

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 10,004 posts
  • Gender:Male
  • Location:OTN
  • Interests:a fact checker combined with a ferret

Posted 16 January 2010 - 10:08 PM

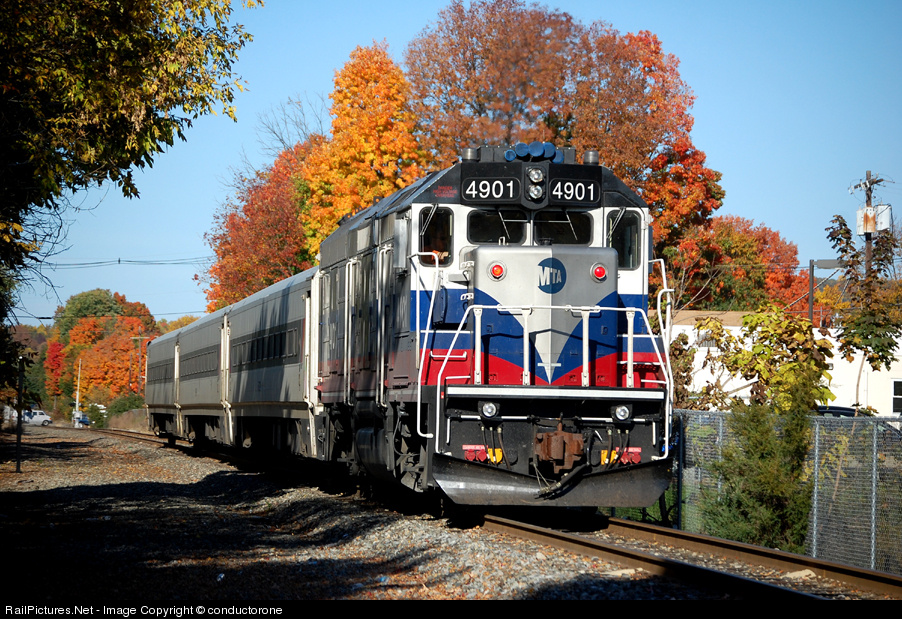

Everyone else nailed it, but here's another engine #4901:

Posted Image
Posted Image

#7 PetalumaLoco

PetalumaLoco

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 2,001 posts
  • Gender:Male
  • Location:Petaluma Ca
  • Interests:Photography computers motorcycles trains

Posted 16 January 2010 - 11:19 PM

Posted Image
Posted Image
Posted Image

#8 battalion51

battalion51

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 7,947 posts
  • Gender:Male
  • Location:USA

Posted 17 January 2010 - 12:33 PM

The number is engine number, its not the train number.

That's exactly what I was saying Dutch. Very rarely is the train number displayed on the front end of the train. On some commuter roads it is though, as seen below:
Posted Image

The Chief
Rail Miles Travelled: 112,496


#9 DET63

DET63

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 1,792 posts

Posted 17 January 2010 - 09:02 PM

I believe the Caltrain commuter trains have the last two digits of the three-digit train number displayed on or near the mirrors of the locomotive (maybe the cab-car, too; I'm not sure).

#10 Green Maned Lion

Green Maned Lion

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 5,914 posts
  • Gender:Male
  • Location:NJ
  • Interests:Sleeping

Posted 19 January 2010 - 08:44 PM

Usually, on the radio, it is also identified by the engine number. I assume it varies road to road, but it might be division to division, or dispatch to dispatch. Sometimes I hear things like "Amtrak [engine number] Proceed WXY Point N to Mile WXZ Point M under restriction 30, over." responded with "Amtrak [Train number] led [engine number] reads proceed WXY point N to WXZ point M restricted 30, please confirm", and "Amtrak [engine number] WXY point N to WXZ point M restricted 30", "Thank you, sir, Amtrak [engine number] out."

(Obviously, its the dispatcher telling the train of that number, pulled by that engine, that they have authorization between mileposts WXY.N to WXZ.M, but there is a restriction of 30 miles per hour.)

Travelled: Broadway Limited (1), Lake Shore Limited (6), Capitol Limited (7), Empire Builder (1), Southwest Chief (2), Sunset Limited (1), California Zephyr (3), Coast Starlight (2), Silver Meteor (5), Silver Star (5), Silver Palm (2), Crescent (1), Cardinal (4), Auto Train (4), Pennsylvanian (2), Palmetto (1), Acela Express (1), Empire Service (1), Northeast Regional (11), Keystone Service (1) --- Total Miles: 50,144 --- Total Trains: 61
Most important: Keep it Simple, Stupid!
Dream of love, dream of me, for you are my love. I love you.
Avatar and sig were done by my fiance, Corvidophile.


#11 PetalumaLoco

PetalumaLoco

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 2,001 posts
  • Gender:Male
  • Location:Petaluma Ca
  • Interests:Photography computers motorcycles trains

Posted 19 January 2010 - 08:49 PM

Usually, on the radio, it is also identified by the engine number. I assume it varies road to road, but it might be division to division, or dispatch to dispatch. Sometimes I hear things like "Amtrak [engine number] Proceed WXY Point N to Mile WXZ Point M under restriction 30, over." responded with "Amtrak [Train number] led [engine number] reads proceed WXY point N to WXZ point M restricted 30, please confirm", and "Amtrak [engine number] WXY point N to WXZ point M restricted 30", "Thank you, sir, Amtrak [engine number] out."

(Obviously, its the dispatcher telling the train of that number, pulled by that engine, that they have authorization between mileposts WXY.N to WXZ.M, but there is a restriction of 30 miles per hour.)

I've always heard the LD trains referred to by dispatchers as the Amtrak train #.
Posted Image

#12 battalion51

battalion51

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 7,947 posts
  • Gender:Male
  • Location:USA

Posted 20 January 2010 - 12:21 AM

As GML pointed out it all depends on the road you're on and the area you are in. If you're in signaled territory generally the train symbol is the primary means of identification with the engine number being a secondary means. However in dark territory the engine number is the main identifier on most roads. For RailAmerica roads using GCOR (which is what they primarily use) there isn't even a slot on the track warrant for the train number, just the engine number. Other forms like CSX's Form D have a slot for both.

The Chief
Rail Miles Travelled: 112,496


#13 DET63

DET63

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 1,792 posts

Posted 20 January 2010 - 12:53 AM

This brings up a question: if, due to a power-pool arrangement or the like, two freight engines with the same number are leading two different trains in the same area, how do dispatchers and engineers make sure they are giving instructions or authorizations to the right train? Or do railroads go out of their way to make sure something like this doesn't happen?

#14 battalion51

battalion51

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 7,947 posts
  • Gender:Male
  • Location:USA

Posted 20 January 2010 - 02:37 AM

Well when you're in an area that's identifying itself by engine number the company it belongs to is ALWAYS used. So for example:

"This will be track warrant ROXB 324 (3-2-4) to the Amtrak 51 dated January the 20th 2010, check box 2 (t-w-o) proceed from Windsor (W-i-n-d-s-o-r) to milepost 75 (7-5), check box 16 (s-i-x-t-e-e-n) track bulletin in effect is 20 (t-w-e-n-t-y), this track warrant contains 2 (t-w-o) boxes checked, they are 2 (t-w-o) and 16 (s-i-x-t-e-e-n)."

In signaled territory it's commonly used when calling signals:

"CSXT Q120 BNSF 4479 North Limited Clear Downtown Hilliard track 1 to 2"

The Chief
Rail Miles Travelled: 112,496


#15 Guest_Guest_*

Guest_Guest_*
  • Guests

Posted 21 January 2010 - 05:09 PM

These are awesome pictures. I'm rethinking what kitchen art should be.

I think I was missing the angle on the nose. Each number points in a different direction?. They just looked like a duplication on the front. And perhaps the little piece jutting out over the windows actually affords them a little more protection.

Closet Train Lover

#16 Guest_Guest_*

Guest_Guest_*
  • Guests

Posted 21 January 2010 - 05:13 PM

And, on the MTA 4901 (above) what are the 5 blue circles above the middle lights between the number plates?

#17 RyanS

RyanS

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 10,004 posts
  • Gender:Male
  • Location:OTN
  • Interests:a fact checker combined with a ferret

Posted 21 January 2010 - 06:06 PM

That's the horn.

On the MARC 4901 they are on a slight angle - I think I have a better picture of it kicking around somewhere.
Posted Image

#18 Long Train Runnin'

Long Train Runnin'

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 2,932 posts
  • Gender:Male
  • Location:Central Jersey

Posted 22 January 2010 - 02:52 PM

Its worth noting that not all locomotives have the number on both sides. NJ Transits ALP-46s only have 1 number plate.
Posted Image
34,707 Miles on Amtrak in 38 states.
Routes Traveled: Acela Express, Adirondack, Amtrak Cascades, California Zephyr, Capitol Limited, Cardinal, Carolinian, City of New Orleans, Coast Starlight, Crescent, Downeaster, Empire Service, Ethan Allen Express, Hiawatha, Keystone Corridor, Lake Shore Limited, Northeast Regional, Maple Leaf, Missouri River Runner, Pacific Surfliner, Pennsylvanian, Southwest Chief, Springfield Shuttles, Texas Eagle, Vermonter.

#19 battalion51

battalion51

    Engineer

  • Members
  • PipPipPipPipPipPip
  • 7,947 posts
  • Gender:Male
  • Location:USA

Posted 23 January 2010 - 08:39 PM

These are awesome pictures. I'm rethinking what kitchen art should be.

I think I was missing the angle on the nose. Each number points in a different direction?. They just looked like a duplication on the front. And perhaps the little piece jutting out over the windows actually affords them a little more protection.

And, on the MTA 4901 (above) what are the 5 blue circles above the middle lights between the number plates?

Closet Train Lover


Generally there is a slight angle. It's more noticeable on some engines than on others. This is a poor timing shot on my part but it demonstrates the angle on some engines pretty well.
Posted Image
On some though, like cab cars it seems to be more stylistic than anything else. It might look odd to just have a single number board that was off center so they went with the classic two board style as seen below.
Posted Image

On the MARC picture, those five little circles look like the horn to me, unless I'm missing what you're talking about.

The Chief
Rail Miles Travelled: 112,496
